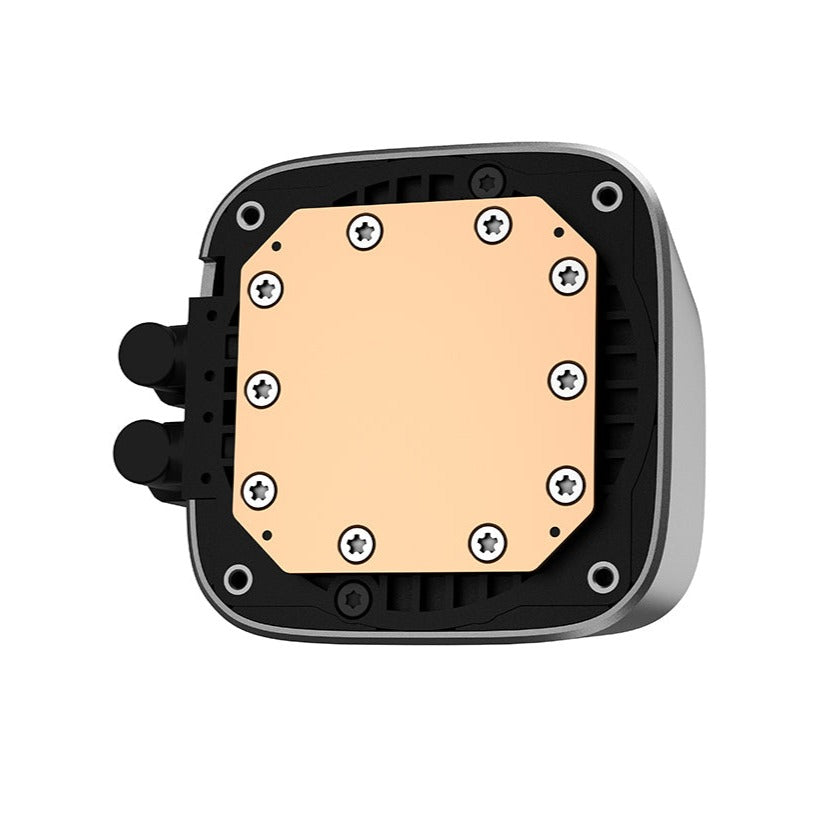

High-performance DeepCool LS520 CPU liquid cooler improved the 4th generation pump’s microchannel design to optimize coolant flow, the three-phase brushless motor up to 3100RPM combines thick pure copper plate maximizes overall cooling efficiency.
New structure dual-chamber pump brings the cool liquid into the cold plate chamber to cool the CPU first before circulating it through the motor chamber to cool the motor, which makes the motor more efficient dumping less heat into the loop.

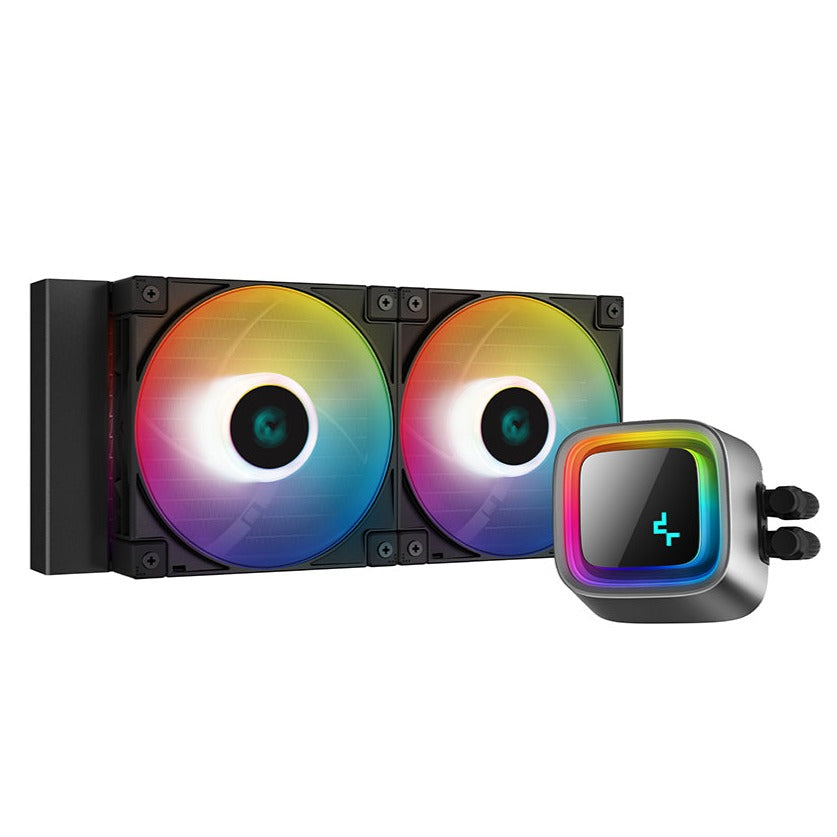

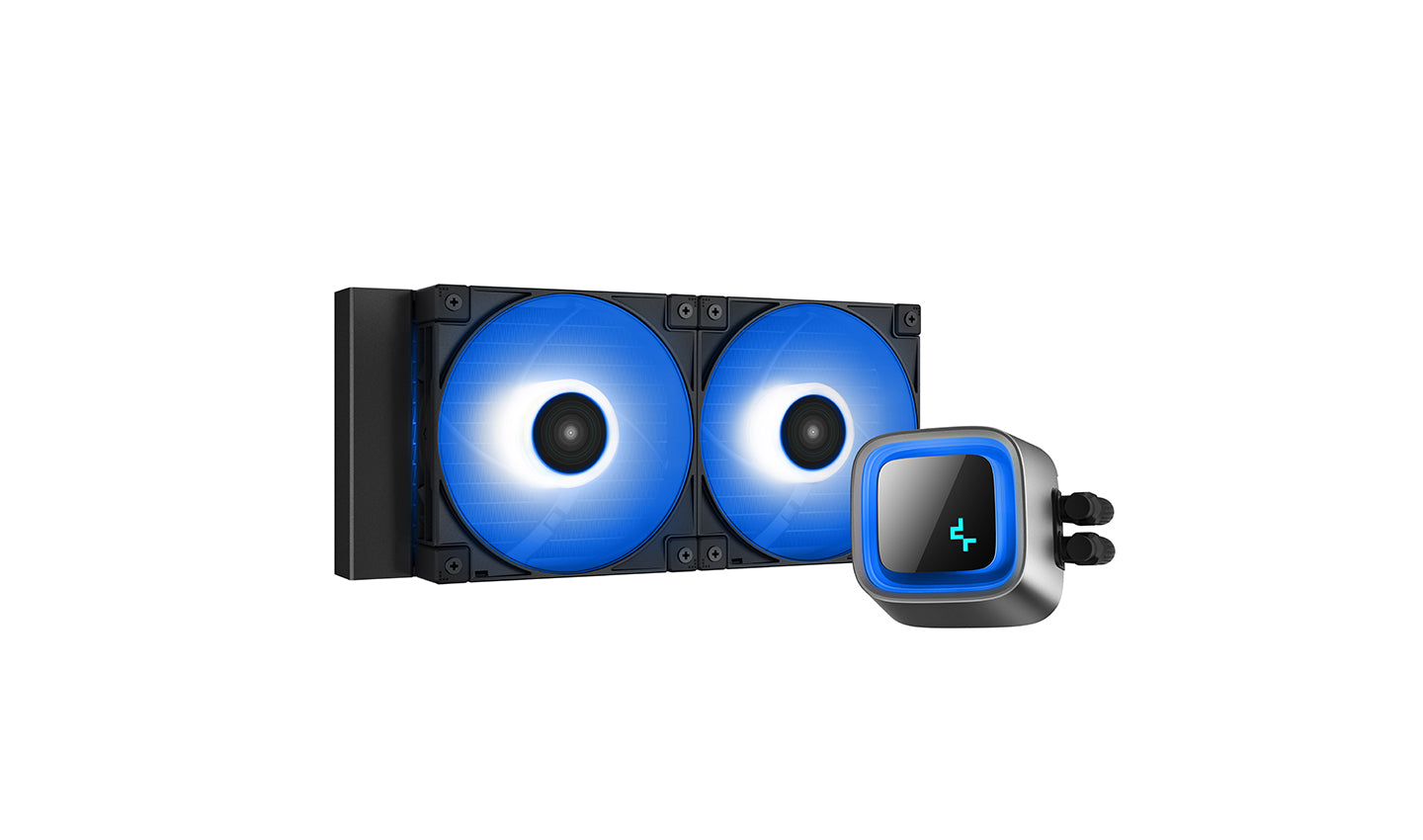

LS520 CPU liquid cooler combines the 4th generation pump with high-density radiator and DeepCool FC120 fans to provide mighty 280w TDP efficient heat dissipation. Water tubes measure 410mm length with two tube clips for neat management in PC case.
LS Series liquid coolers equipped with DeepCool’s Anti-Leak patent technology, the pressure-relief device in the top of radiator vents inner air pressure caused by high temperature to block potential leaking accident after long-term use.
LS520 AIO cooler radiator measures 282*120*27 mm with 13 rows of fins and fin density about 24 fins per inch to realize the heat dissipation efficiently with two daisy chained 120mm DeepCool FC120 fans for better cable management.
DeepCool FC120 FDB fan up to 2250RPM offers 85.85CFM air flow supports the powerful air cooling system, The noise damping pads in fan corners avoid vibration and keep full load noise level under 32.9dB(A) for better using experience.

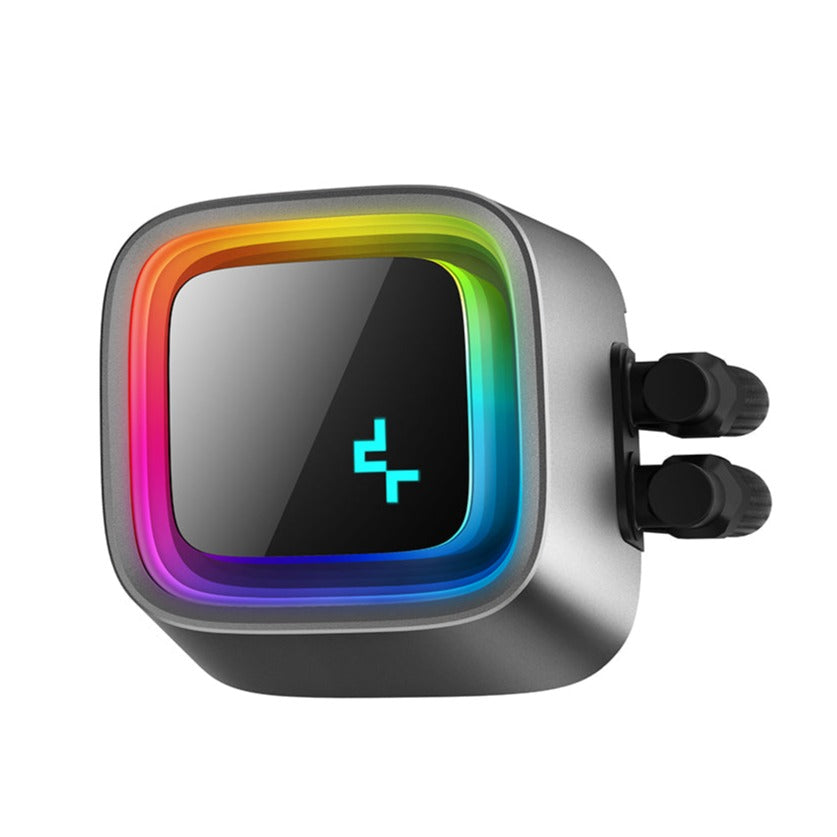

ARGB Aura Sync LS520 CPU liquid cooler builds a marvelous world of light combining with the infinity mirror RGB design on the pump block, ideal choice to build a visually stunning LED lighting PC style.
